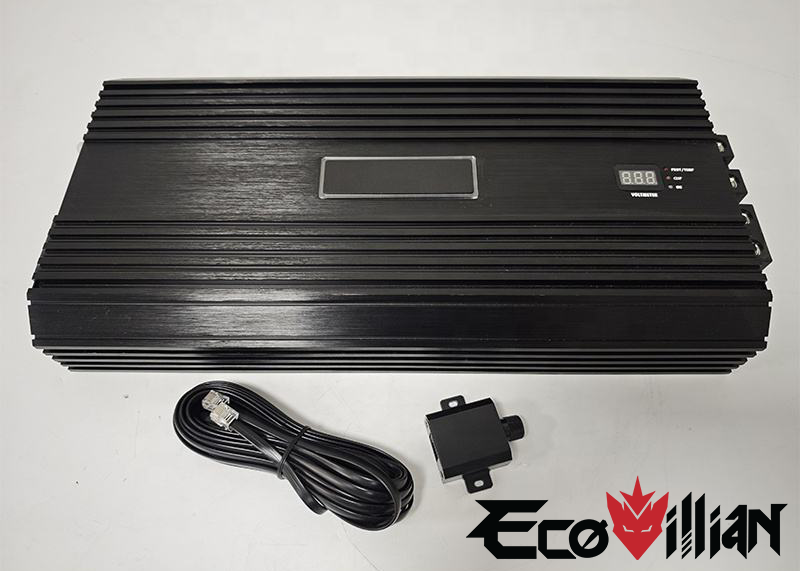

AR-13000.1D Monoblock Class D Amplifier
The AR-13000.1D is a budget friendly Class D mono amplifier. This amplifier features a Low Pass Filter (LPF) and Subsonic Filter that helps produce precise frequency production. The MOSFET power supply and proprietary heat dissipation facilitate effective cooling. The compact design provides versatile installation options.
Type
Class D
RMS Power: 4Ω @ 14.4v
3250 Watts Mono
RMS Power: 2Ω @ 14.4v
6500 Watts Mono
RMS Power: 1Ω @ 14.4v
13000 Watts Mono
Low-pass Filter
40Hz – 180 Hz
Frequency response
10Hz – 20 KHz
Bass Boost
0 – 10dB
Signal Noise Ratio
≥94dB
Input Sensitivity
400mV – 3.6V
Frequency response
10 – 180 Hz
T.H.D
≤0.5%
Input impedance
18KΩ
Input Voltage
12 – 16VDC
Weight
14 Lbs (6.35 Kg)
Dimensions
17.75 x 8.5 x 2.5 Inches (45x22x6.5cm)
1 Year Limited Warranty
